Monnit Edge Flows — Interface Status
Interface status — configure & test

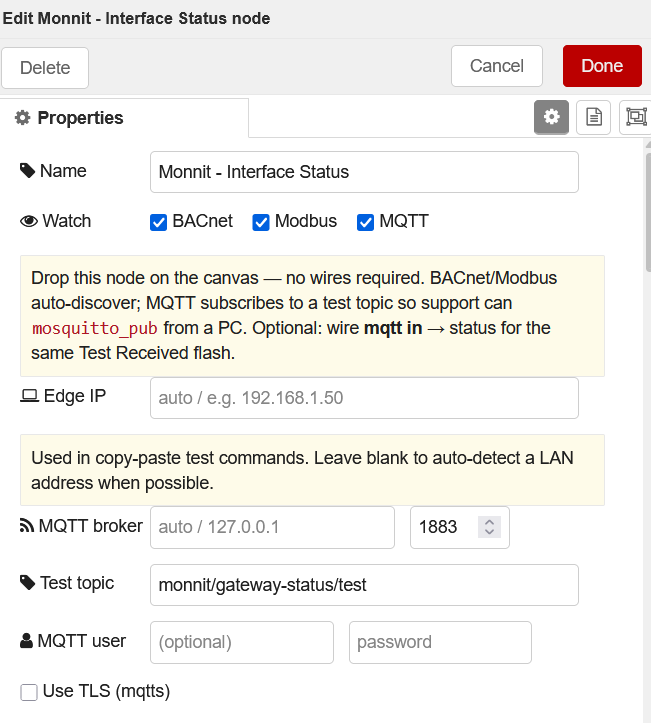

Double-click Monnit - Interface Status:
| Field | Use |
|---|---|
| Watch BACnet / Modbus / MQTT | Uncheck interfaces you are not shipping |
| Edge IP | Fills Copy-test commands (or leave blank for auto) |
| MQTT broker / port / topic | Where the status probe listens for Test Received |
| MQTT user / password / TLS | If broker needs auth |
| Refresh / Flash ms | How often status polls; how long ✓ flashes |
| Emit on output | Optional status JSON on the right wire |

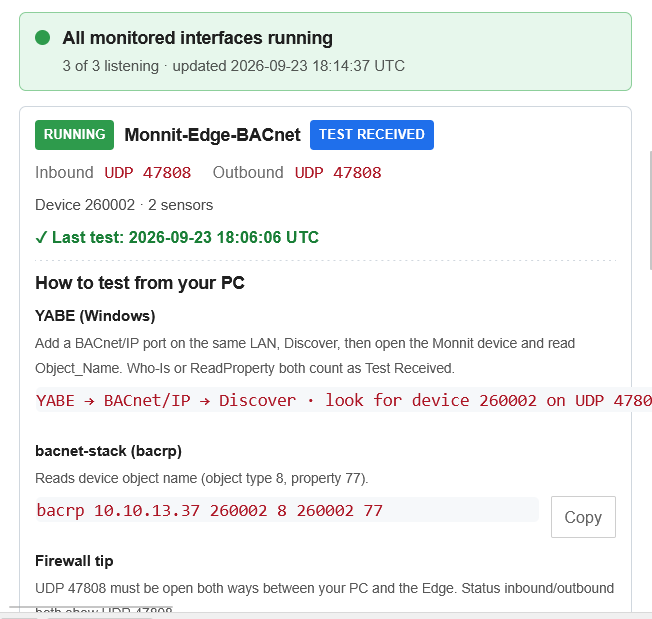

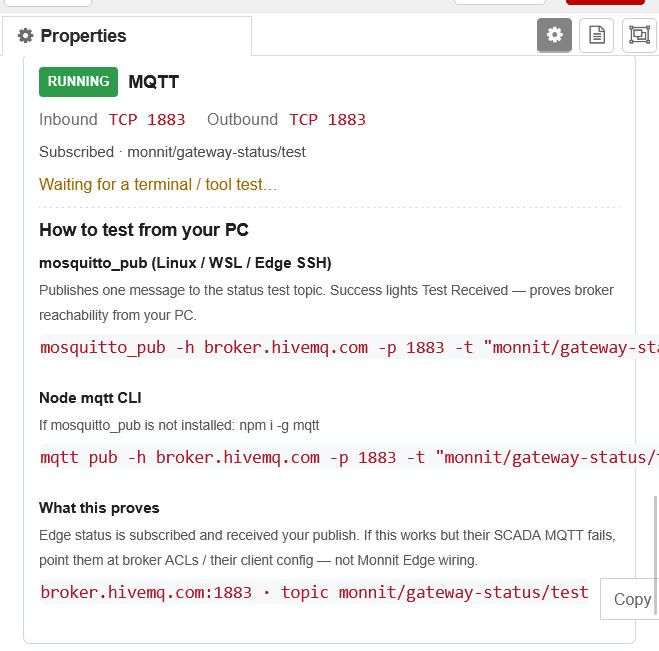

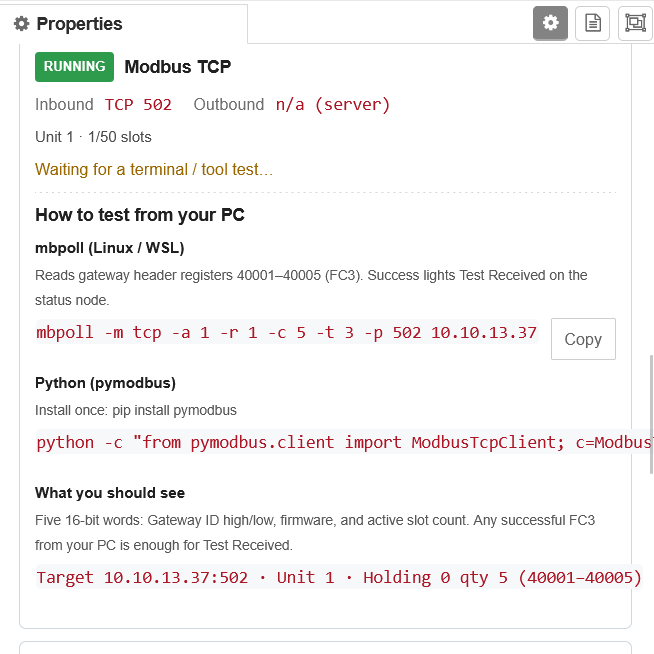

Live cards in the dialog show RUNNING + Copy recipes.
Support script
- Deploy tabs with live iMonnit-Edge traffic
- Open this node — cards RUNNING
- Run each Copy test from a PC
- Test Received = Edge OK → hand off to PLC/BMS/network
Done with the example lab?
Prefer disable + hide over deleting — the tabs stay on the Edge so you can bring them back anytime.
Disable (stops the lab from running)
Disabled tabs do not create their nodes on Deploy (no ports, no simulators, no BACnet/Modbus from those tabs).
- Double-click a lab tab (the tab label at the top), or right-click the tab → Edit flow
- Toggle the flow to Disabled at the bottom of the dialog
- Click Update
- Repeat for each lab tab you want quiet (00 Welcome through 09 Status)
- Deploy
Your own flows on other tabs are not affected.
Hide (clears the tab bar)
Hiding only affects the editor view — it does not stop a flow by itself. Disable first if you want the lab idle.
- Right-click a lab tab
- Choose Hide flow
- Repeat for other lab tabs (or use the tab-bar menu: Hide other flows / Hide all flows if that fits)
Show / re-enable later
Unhide
- Open the Explorer sidebar (folder icon) — a hidden flow shows a reveal control; click it to show the tab again
- Or use the tab-bar drop-down → Show all flows / Reopen hidden flow
Re-enable
- Unhide the tab if needed
- Double-click the tab → toggle back to Enabled → Update
- Deploy
Questions about this lab: support@monnit.com
