Monnit Edge Flows

iMonnit-Edge — the Flow sensor source

iMonnit-Edge is the node that brings live gateway sensor reports into Node-RED. Everything downstream (filter, BACnet, Modbus, MQTT, http request) starts from this message shape.

This tab is now 03 iMonnit-Edge (after 00 Welcome / 01 / 02 Path).

1. Before this node can do anything

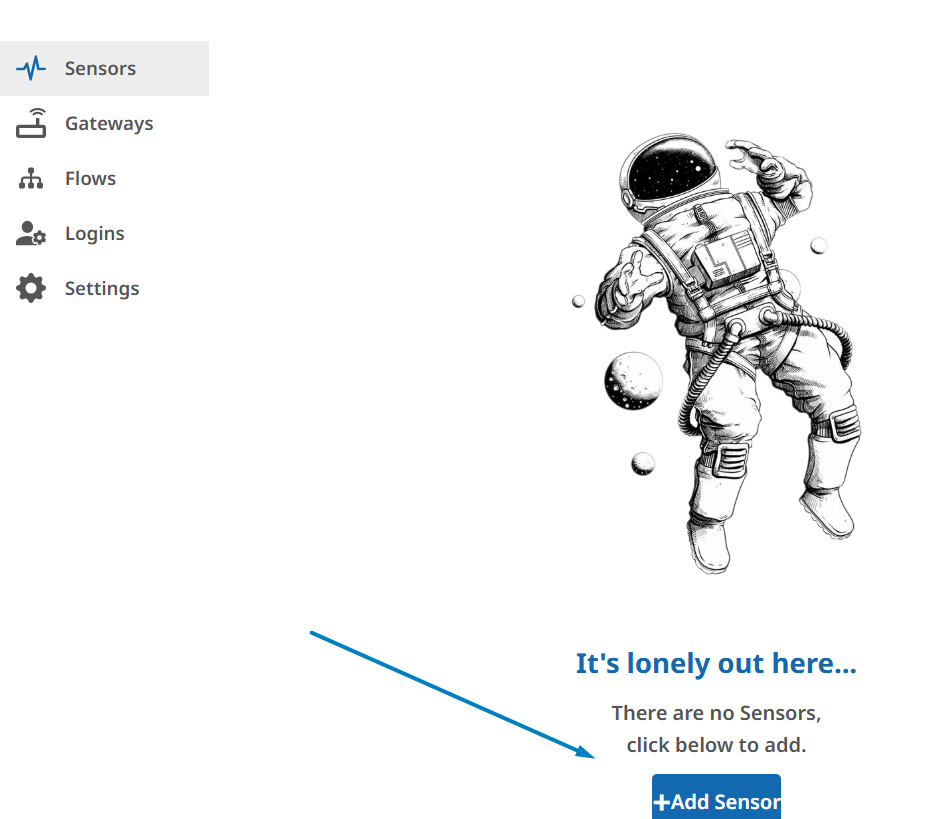

Sensors must already be paired and Online in the Edge Gateway web UI → Sensors:

Add Device with Device ID + Security Code from the sensor label
Confirm the row shows Online and a recent reading
Only then expect messages in Flows

Flows cannot pair sensors. See tab 02 Path for the Edge UI walkthrough.

2. Add and configure iMonnit-Edge

Palette search iMonnit (or Edge) → drag iMonnit-Edge onto the canvas
Double-click it — on a real Edge Gateway, leave defaults (it listens to sensors the gateway already knows)
Wire the right output → Debug / filter / BACnet / Modbus / MQTT / http request
Done → Deploy
Node status should not be a red error ring

Lab stand-in on this tab

The green Monnit - Edge - Sensor Simulator emits the same JSON shape as iMonnit-Edge so you can practice without a radio. On a production Edge, replace it with the real iMonnit-Edge node.

3. What leaves the right port (one msg per report)

Each sensor report is one Node-RED msg :

Field	Typical value	Meaning
`msg.topic`	`"1234"`	Sensor id as a string
`msg.payload`	object (below)	Full sensor report — this is what BACnet / Modbus / MQTT consume
`msg.timestamp`	epoch ms	When Node-RED handled the message (may vary by node version)

Example `msg` (temperature sensor id 1234)

{
  "topic": "1234",
  "payload": {
    "sensorId": 1234,
    "name": "Temperature - 1234",
    "applicationId": 2,
    "state": 0,
    "date": "2026-09-22 12:00:00",
    "readings": [
      { "description": "Temperature", "data": "22.5" }
    ],
    "batteryPercent": 98,
    "signalPercent": 85,
    "voltage": 3.05
  },
  "timestamp": 1727013600000
}

Payload fields to know

`payload` field	What it is
`sensorId`	Numeric Monnit id (match filter / BACnet instance / Modbus slot)
`name`	Display name from the Edge
`applicationId`	Sensor application / profile type
`state`	Sensor state flags (aware, etc.)
`date`	Last report time from the Edge
`readings`	Array of channels: `description` + `data` (string or number)
`batteryPercent` / `voltage`	Battery health
`signalPercent`	RF signal estimate

Multi-channel example (humidity family) — readings may look like:

"readings": [
  { "description": "Humidity", "data": "45.2" },
  { "description": "Temperature", "data": "22.1" },
  { "description": "DewPoint", "data": "9.8" }
]

BACnet / Modbus nodes create one point per reading channel (plus optional battery/signal extras).

4. See it live (do this now)

Deploy this tab — the simulator should start ticking
Open the right sidebar → Debug (bug icon)
Expand a message from Live messages — find payload.sensorId and payload.readings
Or click inject sample JSON below to fire one canned temperature message
For a fuller Debug walkthrough, open tab 04 See data

No messages?

Deploy again; Debug filter = current flow / all nodes
Simulator or iMonnit-Edge showing an error status?
On a real Edge: Sensors page still Online with a recent reading?
Wired to the right output of iMonnit-Edge?

5. Next steps

Goal	Go to
Practice Debug / complete msg object	04 See data
One wire per sensor	05 Sensor filter
BMS / PLC / broker	06 BACnet, 07 Modbus, 08 MQTT

Production cutover: delete/disconnect the simulator → wire iMonnit-Edge → same downstream nodes → Deploy.
