Monnit Edge Flows — MQTT
MQTT — configure broker + publish

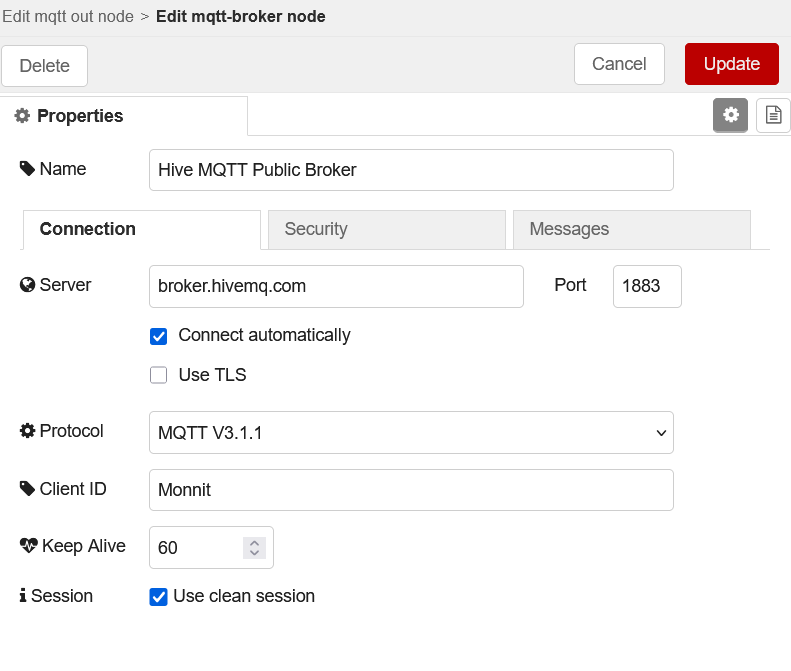

A) mqtt-broker config (pencil on Broker)
| Field | Suggested |
|---|---|
| Server | customer broker host (lab: broker.hivemq.com) |
| Port | 1883 (or 8883 with TLS) |
| Client ID | unique string per Edge |
| User / password | if the broker requires auth |

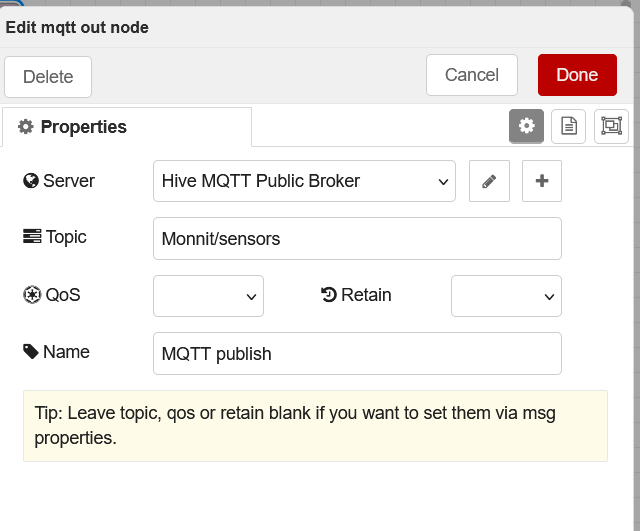

B) mqtt out (double-click)
| Field | Suggested |
|---|---|
| Broker | select config from (A) |
| Topic | e.g. Monnit/sensors |
| QoS / Retain | usually leave default unless IT specifies |
Wire: iMonnit-Edge → mqtt out → Done → Deploy.
Broker status should show connected.

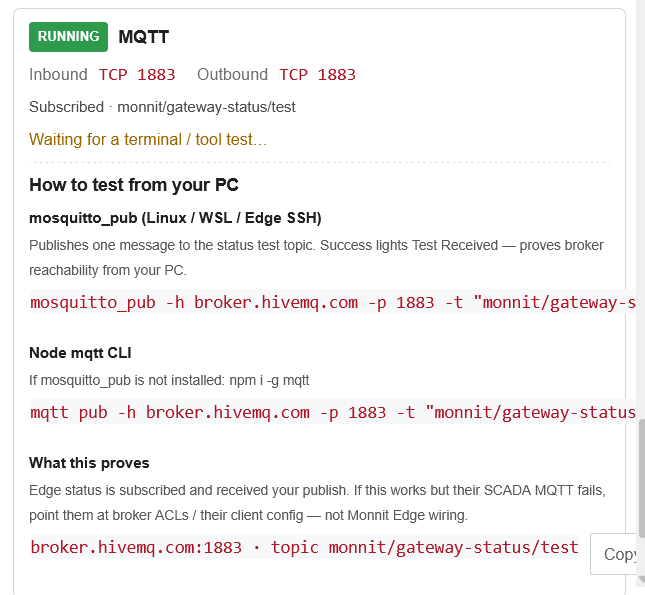

Confirm
Subscribe to your topic, or use 09 Status test:
mosquitto_pub -h <broker> -t "monnit/gateway-status/test" -m "ok"
